Small Find Diff example

Small Find Diff example#

import pyomo.environ as pyo

numpoints = 5
model = m = pyo.ConcreteModel()
m.points = pyo.RangeSet(0,numpoints-1)
m.h = pyo.Param(initialize=1.0/(numpoints-1))

m.z = pyo.Var(m.points)
m.dzdt = pyo.Var(m.points)

m.obj = pyo.Objective(expr=1) # Dummy Objective

def _zdot(m, i):
    return m.dzdt[i] == m.z[i]**2 - 2*m.z[i] +1
m.zdot = pyo.Constraint(m.points,rule=_zdot)

def _back_diff(m,i):
    if i == 0:
        return pyo.Constraint.Skip
    return m.dzdt[i] == (m.z[i]-m.z[i-1])/m.h
m.back_diff = pyo.Constraint(m.points,rule=_back_diff)

def _init_con(m):
    return m.z[0] == -3
m.init_con = pyo.Constraint(rule=_init_con)

solver = pyo.SolverFactory('ipopt')
solver.solve(m,tee=True)

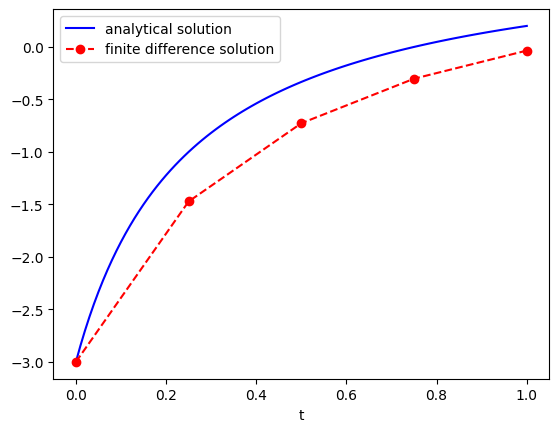

import matplotlib.pyplot as plt

analytical_t = [0.01*i for i in range(0,101)]
analytical_z = [(4*t-3)/(4*t+1) for t in analytical_t]

findiff_t = [m.h*i for i in m.points]
findiff_z = [pyo.value(m.z[i]) for i in m.points]

plt.plot(analytical_t,analytical_z,'b',label='analytical solution')
plt.plot(findiff_t,findiff_z,'ro--',label='finite difference solution')
plt.legend(loc='best')
plt.xlabel('t')
plt.show()
Ipopt 3.14.17:

******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
 Ipopt is released as open source code under the Eclipse Public License (EPL).
         For more information visit https://github.com/coin-or/Ipopt
******************************************************************************

This is Ipopt version 3.14.17, running with linear solver MUMPS 5.7.3.

Number of nonzeros in equality constraint Jacobian...:       23
Number of nonzeros in inequality constraint Jacobian.:        0
Number of nonzeros in Lagrangian Hessian.............:        5

Total number of variables............................:       10
                     variables with only lower bounds:        0
                variables with lower and upper bounds:        0
                     variables with only upper bounds:        0
Total number of equality constraints.................:       10
Total number of inequality constraints...............:        0
        inequality constraints with only lower bounds:        0
   inequality constraints with lower and upper bounds:        0
        inequality constraints with only upper bounds:        0

iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
   0  1.0000000e+00 3.00e+00 0.00e+00  -1.0 0.00e+00    -  0.00e+00 0.00e+00   0
   1  1.0000000e+00 1.74e+00 0.00e+00  -1.0 7.00e+00    -  1.00e+00 1.00e+00H  1
   2  1.0000000e+00 5.79e-02 0.00e+00  -1.0 8.14e-01    -  1.00e+00 1.00e+00h  1
   3  1.0000000e+00 1.47e-04 0.00e+00  -2.5 2.24e-02    -  1.00e+00 1.00e+00h  1
   4  1.0000000e+00 1.73e-09 0.00e+00  -5.7 6.47e-05    -  1.00e+00 1.00e+00h  1

Number of Iterations....: 4

                                   (scaled)                 (unscaled)
Objective...............:   1.0000000000000000e+00    1.0000000000000000e+00
Dual infeasibility......:   0.0000000000000000e+00    0.0000000000000000e+00
Constraint violation....:   1.7255730178078466e-09    1.7255730178078466e-09
Variable bound violation:   0.0000000000000000e+00    0.0000000000000000e+00
Complementarity.........:   0.0000000000000000e+00    0.0000000000000000e+00
Overall NLP error.......:   1.7255730178078466e-09    1.7255730178078466e-09


Number of objective function evaluations             = 6
Number of objective gradient evaluations             = 5
Number of equality constraint evaluations            = 6
Number of inequality constraint evaluations          = 0
Number of equality constraint Jacobian evaluations   = 5
Number of inequality constraint Jacobian evaluations = 0
Number of Lagrangian Hessian evaluations             = 4
Total seconds in IPOPT                               = 0.002

EXIT: Optimal Solution Found.

../../_images/c354a9a602fb551c7ce6628f86949fcbd39d5803efd5c9d1227a35bb4e665c16.png
