Small collocation example

Small collocation example#

import pyomo.environ as pyo

numcollocation = 4
numfinelems = 2

model = m = pyo.ConcreteModel()
m.colloc = pyo.RangeSet(0,numcollocation-1)
m.fe = pyo.RangeSet(0,numfinelems-1)
m.h = pyo.Param(initialize=1.0/numfinelems)

m.z = pyo.Var(m.fe,m.colloc)
m.dzdt = pyo.Var(m.fe,m.colloc)
m.time = pyo.Var(m.fe,m.colloc)

# Collocation matrix for Radau points [0, 0.155051, 0.644949, 1]
adot=[
[-9.000001008080126, -4.1393887736243791, 1.7393879671602779, -3.0000002520200333],
[10.048810106494384, 3.2247461916839306, -3.5678400771209411, 5.5319724150606273],
[-1.3821424037453669, 1.1678398419022438, 0.77525464838285485, -7.5319723310539404],
[0.33333330533110994, -0.25319725996179565, 1.0531974615778044, 5.000000168013341],
]

m.obj = pyo.Objective(expr=1) # Dummy Objective

def _zdot(m, i, j):
    return m.dzdt[i,j] == m.z[i,j]**2 - 2*m.z[i,j] +1
m.zdot = pyo.Constraint(m.fe,m.colloc,rule=_zdot)

# Collocation Equations
def _colloc_eq(m,i,j):
    if j == 0:
        return pyo.Constraint.Skip
    return m.h*(m.dzdt[i,j]) == sum(m.z[i,k]*adot[k][j] for k in range(0,numcollocation))
m.colloc_eq = pyo.Constraint(m.fe,m.colloc,rule=_colloc_eq)

def _colloc_eq_t(m,i,j):
    if j == 0:
        return pyo.Constraint.Skip
    return m.h == sum(m.time[i,k]*adot[k][j] for k in range(0,numcollocation))
m.colloc_eq_t = pyo.Constraint(m.fe,m.colloc,rule=_colloc_eq_t)


# Continuity Equations
def _cont_z(m,i):
    if i == 0:
        return pyo.Constraint.Skip
    return m.z[i,0] == m.z[i-1,numcollocation-1]
m.cont_z = pyo.Constraint(m.fe,rule=_cont_z)

def _cont_t(m,i):
    if i == 0:
        return pyo.Constraint.Skip
    return m.time[i,0] == m.time[i-1,numcollocation-1]
m.cont_t = pyo.Constraint(m.fe,rule=_cont_t)

# Initial Conditions
def _init_con(m):
    return m.z[0,0] == -3
m.init_con = pyo.Constraint(rule=_init_con)

def _init_con_t(m):
    return m.time[0,0] == 0
m.init_con_t = pyo.Constraint(rule=_init_con_t)

solver = pyo.SolverFactory('ipopt')
solver.solve(m,tee=True)

import matplotlib.pyplot as plt

analytical_t = [0.01*i for i in range(0,101)]
analytical_z = [(4*t-3)/(4*t+1) for t in analytical_t]

findiff_t = []
findiff_z = []

for i in range(0,numfinelems):
    for j in range(0,numcollocation):
        if i != 0 and j == 0:
            continue
        findiff_t.append(pyo.value(m.time[i,j]))
        findiff_z.append(pyo.value(m.z[i,j]))

plt.plot(analytical_t,analytical_z,'b',label='analytical solution')
plt.plot(findiff_t,findiff_z,'ro--',label='collocation solution')
plt.legend(loc='best')
plt.xlabel("t")
plt.show()
Ipopt 3.13.2:

******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
 Ipopt is released as open source code under the Eclipse Public License (EPL).
         For more information visit http://projects.coin-or.org/Ipopt

This version of Ipopt was compiled from source code available at
    https://github.com/IDAES/Ipopt as part of the Institute for the Design of
    Advanced Energy Systems Process Systems Engineering Framework (IDAES PSE
    Framework) Copyright (c) 2018-2019. See https://github.com/IDAES/idaes-pse.

This version of Ipopt was compiled using HSL, a collection of Fortran codes
    for large-scale scientific computation.  All technical papers, sales and
    publicity material resulting from use of the HSL codes within IPOPT must
    contain the following acknowledgement:
        HSL, a collection of Fortran codes for large-scale scientific
        computation. See http://www.hsl.rl.ac.uk.
******************************************************************************

This is Ipopt version 3.13.2, running with linear solver ma27.

Number of nonzeros in equality constraint Jacobian...:       76
Number of nonzeros in inequality constraint Jacobian.:        0
Number of nonzeros in Lagrangian Hessian.............:        8

Total number of variables............................:       24
                     variables with only lower bounds:        0
                variables with lower and upper bounds:        0
                     variables with only upper bounds:        0
Total number of equality constraints.................:       24
Total number of inequality constraints...............:        0
        inequality constraints with only lower bounds:        0
   inequality constraints with lower and upper bounds:        0
        inequality constraints with only upper bounds:        0

iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
   0  1.0000000e+00 3.00e+00 0.00e+00  -1.0 0.00e+00    -  0.00e+00 0.00e+00   0
   1  1.0000000e+00 2.29e+00 0.00e+00  -1.0 7.00e+00    -  1.00e+00 1.00e+00H  1
   2  1.0000000e+00 1.92e-01 0.00e+00  -1.0 1.53e+00    -  1.00e+00 1.00e+00h  1
   3  1.0000000e+00 2.37e-03 0.00e+00  -2.5 1.02e-01    -  1.00e+00 1.00e+00h  1
   4  1.0000000e+00 5.51e-07 0.00e+00  -3.8 1.37e-03    -  1.00e+00 1.00e+00h  1
   5  1.0000000e+00 7.77e-15 0.00e+00  -8.6 4.11e-07    -  1.00e+00 1.00e+00h  1

Number of Iterations....: 5

                                   (scaled)                 (unscaled)
Objective...............:   1.0000000000000000e+00    1.0000000000000000e+00
Dual infeasibility......:   0.0000000000000000e+00    0.0000000000000000e+00
Constraint violation....:   7.7715611723760958e-15    7.7715611723760958e-15
Complementarity.........:   0.0000000000000000e+00    0.0000000000000000e+00
Overall NLP error.......:   7.7715611723760958e-15    7.7715611723760958e-15


Number of objective function evaluations             = 7
Number of objective gradient evaluations             = 6
Number of equality constraint evaluations            = 7
Number of inequality constraint evaluations          = 0
Number of equality constraint Jacobian evaluations   = 6
Number of inequality constraint Jacobian evaluations = 0
Number of Lagrangian Hessian evaluations             = 5
Total CPU secs in IPOPT (w/o function evaluations)   =      0.003
Total CPU secs in NLP function evaluations           =      0.000

EXIT: Optimal Solution Found.

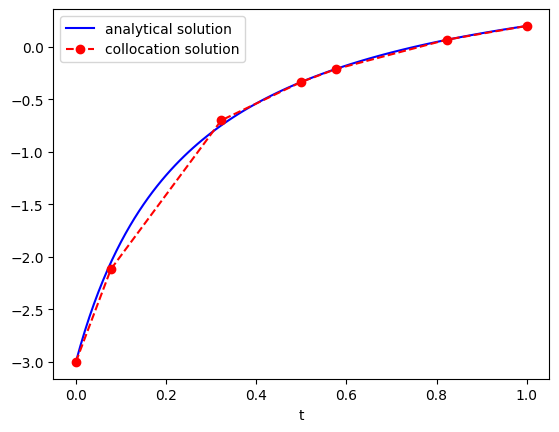

../../_images/711a263859e11ffa3eecf7ab33dfa20ed9bd20d99d44e440a23a246db48e8f8b.png
