try:
  import google.colab
  IN_COLAB = True
except Exception:
  IN_COLAB = False

try:
  if not IN_COLAB:
    from Py4ti2int32 import graver as py4ti2_graver
    HAS_PY4TI2 = True
  else:
    py4ti2_graver = None
    HAS_PY4TI2 = False
except ImportError:
  py4ti2_graver = None
  HAS_PY4TI2 = False

from pathlib import Path
from urllib.request import urlretrieve

from sympy import *
import matplotlib.pyplot as plt
import numpy as np
from typing import Callable
import itertools
import random
import time

SELECTED_GAMA_EXAMPLE = 4  # Change to 1, 2, 3, or 4, then rerun from this cell downward.


def load_gama_example(example_id: int) -> dict[str, object]:
    """Return one of the class-reference GAMA examples."""
    if example_id == 1:
        return {
            "name": "Example 1: illustrative Graver augmentation",
            "A": np.array([[1, 1, 1, 1], [1, 5, 10, 25]], dtype=int),
            "b": np.array([[21], [156]], dtype=int),
            "x0": np.array([1, 15, 3, 2], dtype=int),
            "x_lo": np.zeros(4, dtype=int),
            "x_up": 15 * np.ones(4, dtype=int),
            "c": None,
            "objective": "distance_to_5",
            "graver_directions": np.array(
                [
                    [5, -6, 0, 1],
                    [5, -9, 4, 0],
                    [0, 3, -4, 1],
                    [5, -3, -4, 2],
                    [5, 0, -8, 3],
                ],
                dtype=int,
            ),
        }
    if example_id == 2:
        return {
            "name": "Example 2: four-variable linear example",
            "A": np.array([[1, 1, 1, 1], [1, 2, 3, 4]], dtype=int),
            "b": np.array([[10], [21]], dtype=int),
            "x0": np.array([1, 8, 0, 1], dtype=int),
            "x_lo": np.zeros(4, dtype=int),
            "x_up": 21 * np.ones(4, dtype=int),
            "c": np.array([0, 1, 0, 2], dtype=int),
            "objective": "linear",
            "graver_directions": np.array(
                [
                    [1, -2, 1, 0],
                    [2, -3, 0, 1],
                    [1, -1, -1, 1],
                    [0, 1, -2, 1],
                    [1, 0, -3, 2],
                ],
                dtype=int,
            ),
        }
    if example_id == 3:
        return {
            "name": "Example 3: alternate four-variable linear example",
            "A": np.array([[1, 1, 1, 1], [0, 1, 2, 3]], dtype=int),
            "b": np.array([[10], [15]], dtype=int),
            "x0": np.array([3, 0, 6, 1], dtype=int),
            "x_lo": np.zeros(4, dtype=int),
            "x_up": 10 * np.ones(4, dtype=int),
            "c": np.array([1, 3, 14, 17], dtype=int),
            "objective": "linear",
            "graver_directions": np.array(
                [
                    [2, -3, 0, 1],
                    [1, -2, 1, 0],
                    [1, -1, -1, 1],
                    [0, 1, -2, 1],
                    [1, 0, -3, 2],
                ],
                dtype=int,
            ),
        }
    if example_id == 4:
        return {
            "name": "Example 4: saved portfolio instance",
            "A": np.array(
                [
                    [1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 0, 1, 0, 1, 0, 1, 1, 1, 0, 1, 0, 1, 0],
                    [1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 1, 1, 1, 1],
                    [0, 1, 0, 0, 0, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 0, 0, 1, 1, 1],
                    [0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 0, 1, 1, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0],
                    [0, 1, 1, 1, 1, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0],
                ],
                dtype=int,
            ),
            "b": np.array([[9], [8], [7], [5], [5]], dtype=int),
            "x0": np.array([1, 1, 1, 1, -1, 1, 1, 1, 1, 1, 1, 1, -2, 1, 0, -1, 0, 1, -1, 1, -2, -2, 1, 1, 1], dtype=int),
            "x_lo": None,
            "x_up": None,
            "c": None,
            "objective": "portfolio",
            "graver_directions": None,
        }
    raise ValueError(f"Unknown GAMA example {example_id}; choose 1, 2, 3, or 4.")


example_data = load_gama_example(SELECTED_GAMA_EXAMPLE)
A = example_data["A"]
b = example_data["b"]
x0 = example_data["x0"]
x_lo = example_data["x_lo"] if example_data["x_lo"] is not None else -2 * np.ones_like(x0)
x_up = example_data["x_up"] if example_data["x_up"] is not None else 2 * np.ones_like(x0)
c = example_data["c"]
m, n = A.shape

print(f"Running {example_data['name']} with A shape {A.shape} and {len(x0)} variables.")


def resolve_example_data_path(filename: str) -> Path | None:
    """Return the path to a shared Notebook 3 data file when it exists."""
    candidates = [
        Path("notebooks_data") / filename,
        Path("..") / "notebooks_data" / filename,
        Path("/content/QuIP/notebooks_data") / filename,
        Path("/content/notebooks_data") / filename,
    ]
    for candidate in candidates:
        if candidate.exists():
            return candidate
    return None


def load_shared_csv(filename: str, dtype=float) -> np.ndarray | None:
    """Load a shared Notebook 3 CSV asset when it is available."""
    data_path = resolve_example_data_path(filename)
    if data_path is None:
        return None
    return np.loadtxt(data_path, delimiter=",", dtype=dtype)


def load_shared_coefficients(num_variables: int) -> tuple[np.ndarray, np.ndarray]:
    """Return the fixed `mu` and `sigma` vectors shared by both notebooks.

    Returns
    -------
    tuple[np.ndarray, np.ndarray]
        The expected-return vector `mu` and the volatility vector `sigma`.
    """
    coeffs = load_shared_csv("3-GAMA_example4_coefficients.csv", dtype=float)
    if coeffs is None:
        rng = np.random.default_rng(1729)
        mu = rng.random(num_variables)
        sigma = rng.random(num_variables) * mu
        print("Shared coefficient file not found; generating deterministic coefficients with seed 1729.")
        return mu, sigma

    coeffs = np.atleast_2d(coeffs)
    if coeffs.shape != (2, num_variables):
        raise ValueError(f"Expected coefficient array with shape (2, {num_variables}), found {coeffs.shape}.")
    return coeffs[0], coeffs[1]


# Parameters of objective function
epsilon = 0.01
if SELECTED_GAMA_EXAMPLE == 4:
    mu, sigma = load_shared_coefficients(n)
else:
    mu = np.zeros(n, dtype=float)
    sigma = np.zeros(n, dtype=float)


def load_precomputed_graver_basis() -> np.ndarray:
    """Load the bundled Graver basis from the repository or the Colab workspace."""
    candidates = [
        Path("notebooks_py") / "graver.npy",
        Path("graver.npy"),
        Path("/content/graver.npy"),
        Path("/content/QuIP/notebooks_py/graver.npy"),
    ]
    for candidate in candidates:
        if candidate.exists():
            return np.array(np.load(candidate))

    download_path = Path("/content/graver.npy")
    download_path.parent.mkdir(parents=True, exist_ok=True)
    urlretrieve(
        "https://github.com/SECQUOIA/QuIP/raw/main/notebooks_py/graver.npy",
        download_path,
    )
    return np.array(np.load(download_path))


def graver_basis_for_selected_example() -> np.ndarray:
    """Return built-in Graver directions for small examples or the Example 4 basis."""
    if example_data["graver_directions"] is not None:
        directions = np.array(example_data["graver_directions"], dtype=int)
        print(f"Using {len(directions)} built-in Graver directions for Example {SELECTED_GAMA_EXAMPLE}.")
        return directions

    if HAS_PY4TI2:
        start = time.process_time()
        directions = py4ti2_graver("mat", A.tolist())
        print(time.process_time() - start, "seconds to compute Graver basis")
        return np.array(directions, dtype=int)

    if not IN_COLAB:
        print("Py4ti2int32 is not available locally; loading the bundled graver.npy instead.")
    else:
        print("The Graver basis has 29789 elements in this case.")
    return np.array(load_precomputed_graver_basis(), dtype=int)


r = graver_basis_for_selected_example()

# Objective function definition
def f(x):
    """Evaluate the selected example objective for a candidate point `x`."""
    x = np.asarray(x)
    if SELECTED_GAMA_EXAMPLE == 1:
        return np.sum(np.abs(x - 5))
    if SELECTED_GAMA_EXAMPLE == 4:
        return -np.dot(mu, x) + np.sqrt(((1 - epsilon) / epsilon) * np.dot(sigma**2, x**2))
    return np.dot(c, x)


# Constraints definition
def const(x):
    """Return True when `x` satisfies the linear constraints `A x = b`."""
    return np.array_equal(np.asarray(A @ np.asarray(x)).reshape(-1), np.asarray(b).reshape(-1))

# Define rules to choose augmentation element, either the best one (argmin) or the first one that is found
def argmin(iterable):
    """Return the index and value of the best augmentation candidate."""
    return min(enumerate(iterable), key=lambda x: x[1])

def greedy(iterable):
    """Return the first improving augmentation candidate, or the last one if none improve."""
    for i, val in enumerate(iterable):
        if val[1] != 0:
            return i, val
    else:
        return i, val

# Bisection rules for finding best step size
def bisection(g: np.ndarray, fun: Callable, x: np.ndarray, x_lo: np.ndarray = None, x_up: np.ndarray = None, laststep: np.ndarray = None) -> (float, int):
    """Compute the best integer step along a Graver direction within the box bounds."""
    if np.array_equal(g, laststep):
        return (fun(x), 0)
    if x_lo is None:
        x_lo = np.zeros_like(x)
    if x_up is None:
        x_up = np.ones_like(x) * max(x) * 2

    u = max(x_up) - min(x_lo)
    l = -(max(x_up) - min(x_lo))
    for i, gi in enumerate(g):
        if gi >= 1:
            if np.floor((x_up[i] - x[i]) / gi) < u:
                u = int(np.floor((x_up[i] - x[i]) / gi))
            if np.ceil((x_lo[i] - x[i]) / gi) > l:
                l = int(np.ceil((x_lo[i] - x[i]) / gi))
        elif gi <= -1:
            if np.ceil((x_up[i] - x[i]) / gi) > l:
                l = int(np.ceil((x_up[i] - x[i]) / gi))
            if np.floor((x_lo[i] - x[i]) / gi) < u:
                u = int(np.floor((x_lo[i] - x[i]) / gi))
    alpha = u

    while u - l > 1:
        if fun(x + l * g) < fun(x + u * g):
            alpha = l
        else:
            alpha = u
        p1 = int(np.floor((l + u) / 2) - 1)
        p2 = int(np.floor((l + u) / 2))
        p3 = int(np.floor((l + u) / 2) + 1)
        if fun(x + p1 * g) < fun(x + p2 * g):
            u = int(np.floor((l + u) / 2))
        elif fun(x + p3 * g) < fun(x + p2 * g):
            l = int(np.floor((l + u) / 2) + 1)
        else:
            alpha = p2
            break

    if fun(x + l * g) < fun(x + u * g) and fun(x + l * g) < fun(x + alpha * g):
        alpha = l
    elif fun(x + u * g) < fun(x + alpha * g):
        alpha = u

    return (fun(x + alpha * g), alpha)

# We can just have a single step move (works well with greedy approach)
def single_move(g: np.ndarray, fun: Callable, x: np.ndarray, x_lo: np.ndarray = None, x_up: np.ndarray = None, laststep: np.ndarray = None) -> (float, int):
    """Evaluate whether a single forward or backward step improves the objective."""
    if x_lo is None:
        x_lo = np.zeros_like(x)
    if x_up is None:
        x_up = np.ones_like(x) * max(x) * 2

    alpha = 0

    if (x + g <= x_up).all() and (x + g >= x_lo).all():
        if fun(x + g) < fun(x):
            alpha = 1
    elif (x - g <= x_up).all() and (x - g >= x_lo).all():
        if fun(x - g) < fun(x) and fun(x - g) < fun(x + g):
            alpha = -1

    return (fun(x + alpha * g), alpha)

def augmentation(grav = r, func = f, x = x0, x_lo = x_lo, x_up = x_up, OPTION: int = 1, VERBOSE: bool = True, itermax: int = 1000) -> (int, float, np.ndarray):
    """Apply a Graver augmentation rule until convergence.

    Parameters
    ----------
    grav : np.ndarray
        Candidate Graver directions, one row per direction.
    func : Callable
        Objective function evaluated after each trial step.
    x : np.ndarray
        Starting feasible point.
    x_lo, x_up : np.ndarray
        Componentwise lower and upper bounds enforced during step selection.
    OPTION : int
        `1` for best-improving bisection, `2` for first improving bisection, and `3` for first improving single moves.
    VERBOSE : bool
        When `True`, print the accepted step information at every iteration.
    itermax : int
        Maximum number of augmentation iterations.

    Returns
    -------
    tuple[int, float, np.ndarray]
        The number of iterations performed, the last objective value, and the final point.
    """
    # OPTION = 1 # Best augmentation, select using bisection rule
    # OPTION = 2 # Greedy augmentation, select using bisection rule
    # OPTION = 3 # Greedy augmentation, select using first found

    dist = 1
    gprev = None
    k = 1
    if VERBOSE:
        print("Initial point:", x)
        print("Objective function:", func(x))
    while dist != 0 and k < itermax:
        if OPTION == 1:
            g1, (obj, dist) = argmin(
                bisection(g=e, fun=func, x=x, laststep=gprev, x_lo=x_lo, x_up=x_up) for e in grav)
        elif OPTION == 2:
            g1, (obj, dist) = greedy(
                bisection(g=e, fun=func, x=x, laststep=gprev, x_lo=x_lo, x_up=x_up) for e in grav)
        elif OPTION == 3:
            g1, (obj, dist) = greedy(
                single_move(g=e, fun=func, x=x, x_lo=x_lo, x_up=x_up) for e in grav)
        else:
            print("Option not implemented")
            break
        x = x + grav[g1] * dist
        gprev = grav[g1]
        if VERBOSE:
            print("Iteration ", k)
            print(g1, (obj, dist))
            print("Augmentation direction:", gprev)
            print("Distanced moved:", dist)
            print("Step taken:", grav[g1] * dist)
            print("Objective function:", obj)
            print(func(x))
            print("Current point:", x)
            print("Are constraints satisfied?", const(x))
        else:
            if k % 50 == 0:
                print(k)
                print(obj)
        k += 1
    return (k, obj, x)

print('Best-augmentation: Choosing among the best step that each element of G can do (via bisection), the one that reduces the most the objective')
start = time.process_time()
iter,f_obj,xf = augmentation(func = f, OPTION=1,VERBOSE=False)
print(time.process_time() - start, 'seconds')
print(iter, 'iterations')
print('solution:',f_obj,xf)

print('Greedy-best-augmentation: Choosing among the best step that each element of G can do (via bisection), the first one encountered that reduces the objective')
start = time.process_time()
iter,f_obj,xf = augmentation(func = f, OPTION=2,VERBOSE=False)
print(time.process_time() - start, 'seconds')
print(iter, 'iterations')
print('solution:',f_obj,xf)

print('Greedy-augmentation: Choosing among the first element of G that with a single step reduces the objective')
start = time.process_time()
iter,f_obj,xf = augmentation(func = f, OPTION=3,VERBOSE=False)
print(time.process_time() - start, 'seconds')
print(iter, 'iterations')
print('solution:',f_obj,xf)

# Let's install with dimod and neal
if IN_COLAB:
    !pip install dimod
    !pip install dwave-neal
import dimod
import neal

def load_precomputed_feasible_starts() -> np.ndarray | None:
    """Return the committed Example 4 feasible starts when available."""
    if SELECTED_GAMA_EXAMPLE != 4:
        return None

    data = load_shared_csv("3-GAMA_example4_feasible_starts.csv", dtype=int)
    if data is None:
        return None
    return np.atleast_2d(data).astype(int)


def get_default_feasible_starts(A, b, sampler, samples=20) -> np.ndarray:
    """Load Example 4 starts, or use the documented start for smaller examples."""
    if SELECTED_GAMA_EXAMPLE != 4:
        print(f"Using the documented x0 as the feasible start for Example {SELECTED_GAMA_EXAMPLE}.")
        return np.atleast_2d(x0).astype(int)

    feasible = load_precomputed_feasible_starts()
    if feasible is not None:
        print(f"Loaded {len(feasible)} precomputed feasible solutions from 3-GAMA_example4_feasible_starts.csv.")
        return feasible

    print("Shared feasible-start file not found; recomputing feasible solutions with simulated annealing.")
    return get_feasible(A, b, sampler=sampler, samples=samples)


def load_graver_order(size: int) -> np.ndarray:
    """Return the saved Example 4 Graver order, or the natural order for small examples."""
    if SELECTED_GAMA_EXAMPLE != 4:
        return np.arange(size)

    order = load_shared_csv("3-GAMA_example4_graver_order.csv", dtype=int)
    if order is not None:
        order = np.atleast_1d(order).astype(int)
        if order.shape[0] != size:
            raise ValueError(f"Expected {size} Graver indices, found {order.shape[0]}.")
        return order

    rng = np.random.default_rng(271828)
    print("Shared Graver-order file not found; generating a deterministic permutation with seed 271828.")
    return rng.permutation(size)


def get_feasible(A, b, sampler, samples=20):
    """Sample binary feasible starting points by minimizing the QUBO residual.

    Parameters
    ----------
    A, b : np.ndarray
        Constraint matrix and right-hand side.
    sampler : object
        Binary quadratic model sampler used for the QUBO.
    samples : int
        Number of reads requested from the sampler.

    Returns
    -------
    np.ndarray
        Binary feasible starting points with one row per sample and one column per variable.
    """
    b_vector = np.asarray(b).reshape(-1)
    Q = np.dot(A.T, A) + np.diag(np.dot(-2 * b_vector, A))
    offset = int(np.dot(b_vector, b_vector))
    bqm = dimod.BinaryQuadraticModel(Q, "BINARY", offset=offset)
    sampleset = sampler.sample(bqm, num_reads=samples)
    feas_sols = [np.fromiter(sample.values(), dtype=int) for sample, energy in sampleset.data(['sample', 'energy']) if energy == 0]
    return np.unique(np.array(feas_sols, dtype=int), axis=0)

simAnnSampler = neal.SimulatedAnnealingSampler()

feas_sols = get_default_feasible_starts(A, b, sampler=simAnnSampler, samples = 20)
graver_order = load_graver_order(r.shape[0])
print(len(feas_sols), ' feasible solutions ready.')

init_obj = np.zeros((len(feas_sols),1))
iters_full = np.zeros((len(feas_sols),1))
final_obj_full = np.zeros((len(feas_sols),1))
times_full = np.zeros((len(feas_sols),1))
for i,sol in enumerate(feas_sols):
    if not const(sol):
        print("Infeasible")
        pass
    init_obj[i] = f(sol)
    start = time.process_time()
    iter, f_obj, xf = augmentation(grav = r, func = f, x = sol, OPTION=3,VERBOSE=False)
    times_full[i] = time.process_time() - start
    iters_full[i] = iter
    final_obj_full[i] = f_obj

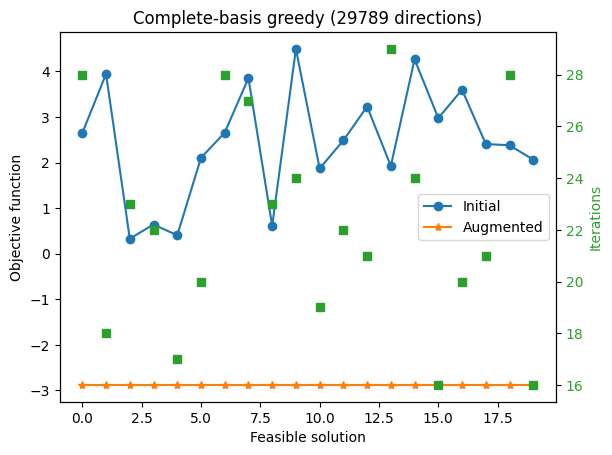

fig, ax1 = plt.subplots()

ax2 = ax1.twinx()

ax1.plot(init_obj, marker='o', ls='-', label='Initial')
ax1.plot(final_obj_full, marker='*', ls='-', label='Augmented')
ax1.set_ylabel('Objective function')
ax1.set_xlabel('Feasible solution')
ax1.set_title(f'Complete-basis greedy ({len(r)} directions)')

color = 'tab:green'
ax2.set_ylabel('Iterations', color=color)
ax2.plot(iters_full, color=color, marker='s', ls='')
ax2.tick_params(axis='y', labelcolor=color)
_ = ax1.legend()
plt.show()

n_draws = min(10, r.shape[0])
index = graver_order[:n_draws]

iters_few = np.zeros((len(feas_sols),1))
final_obj_few = np.zeros((len(feas_sols),1))
times_few = np.zeros((len(feas_sols),1))
for i, sol in enumerate(feas_sols):
    if not const(sol):
        print("Infeasible")
        pass
    start = time.process_time()
    iter, f_obj, xf = augmentation(grav = r[index], x = sol, func = f, OPTION=3,VERBOSE=False)
    times_few[i] = time.process_time() - start
    iters_few[i] = iter
    final_obj_few[i] = f_obj

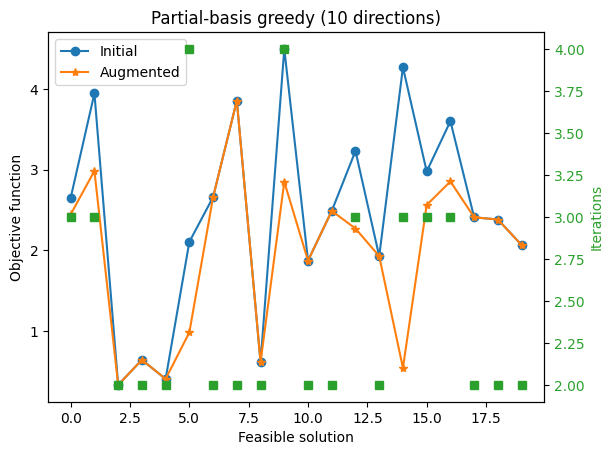

fig, ax1 = plt.subplots()

ax2 = ax1.twinx()

ax1.plot(init_obj, marker='o', ls='-', label='Initial')
ax1.plot(final_obj_few, marker='*', ls='-', label='Augmented')
ax1.set_ylabel('Objective function')
ax1.set_xlabel('Feasible solution')
ax1.set_title(f'Partial-basis greedy ({n_draws} directions)')

color = 'tab:green'
ax2.set_ylabel('Iterations', color=color)
ax2.plot(iters_few, color=color, marker='s', ls='')
ax2.tick_params(axis='y', labelcolor=color)
_ = ax1.legend()
plt.show()

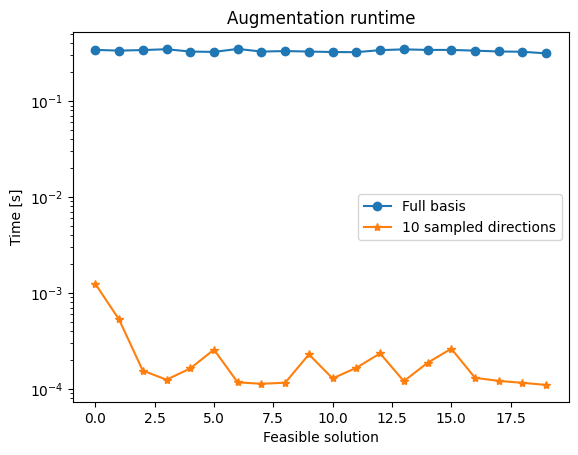

fig, ax1 = plt.subplots()

ax1.plot(times_full, marker='o', ls='-', label='Full basis')
ax1.plot(times_few, marker='*', ls='-', label=f'{n_draws} sampled directions')
ax1.set_ylabel('Time [s]')
ax1.set_xlabel('Feasible solution')
ax1.set_yscale('log')
ax1.set_title('Augmentation runtime')
_ = plt.legend()
plt.show()

N = 10 # Discretization of the fractions of Graver considered
iters = np.zeros((len(feas_sols),N-1))
final_obj = np.zeros((len(feas_sols),N-1))
times = np.zeros((len(feas_sols),N-1))
for j in range(1,N):

    n_draws = max(1, r.shape[0]//N*j)
    index = graver_order[:n_draws]

    for i, sol in enumerate(feas_sols):
        if not const(sol):
            print("Infeasible")
            pass
        start = time.process_time()
        iter, f_obj, xf = augmentation(grav = r[index], x = sol, func = f, OPTION=3,VERBOSE=False)
        times[i,j-1] = time.process_time() - start
        iters[i,j-1] = iter
        final_obj[i,j-1] = f_obj

def lift_zero_objective_gaps(values: np.ndarray, global_minimum: float) -> tuple[np.ndarray, float]:
    """Return log-safe objective gaps and the floor used to display zero gaps."""
    gaps = np.maximum(values - global_minimum, 0.0)
    positive = gaps[gaps > 0]
    zero_floor = positive.min() / 10 if positive.size else np.finfo(float).eps
    adjusted = np.where(gaps > 0, gaps, zero_floor)
    return adjusted, zero_floor

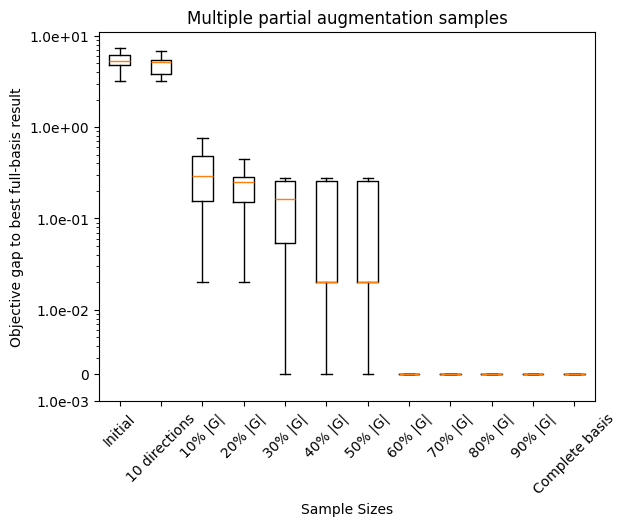

def plot_objective_gap_boxplot(data: np.ndarray, labels: list[str], global_minimum: float) -> None:
    """Plot log-scaled objective gaps to the best full-basis result.

    Parameters
    ----------
    data : np.ndarray
        Objective values to compare, with one column per experiment.
    labels : list[str]
        Labels for the boxplot columns.
    global_minimum : float
        Best full-basis objective used as the baseline.

    Returns
    -------
    None
        Displays the boxplot in the notebook.
    """
    adjusted, zero_floor = lift_zero_objective_gaps(data, global_minimum)

    fig, ax = plt.subplots()
    ax.boxplot(adjusted)
    ax.set_xticklabels(labels)
    ax.set_ylabel('Objective gap to best full-basis result')
    ax.set_xlabel('Sample Sizes')
    ax.set_yscale('log')
    ax.set_title('Multiple partial augmentation samples')

    tick_lo = int(np.floor(np.log10(adjusted.min())))
    tick_hi = int(np.ceil(np.log10(adjusted.max())))
    decade_ticks = 10.0 ** np.arange(tick_lo, tick_hi + 1)
    ticks = np.unique(np.concatenate(([zero_floor], decade_ticks)))
    ax.set_yticks(ticks)
    ax.set_yticklabels(['0' if np.isclose(t, zero_floor) else f'{t:.1e}' for t in ticks])

sample_labels = [f'{10 * i}% |G|' for i in range(1, N)]
sample_labels.insert(0, f'{10} directions')
sample_labels.append('Complete basis')
objective_labels = ['Initial', *sample_labels]

objective_gap_data = np.hstack((init_obj, final_obj_few, final_obj, final_obj_full))
plot_objective_gap_boxplot(objective_gap_data, objective_labels, float(np.min(final_obj_full)))
plt.xticks(rotation=45)
plt.show()

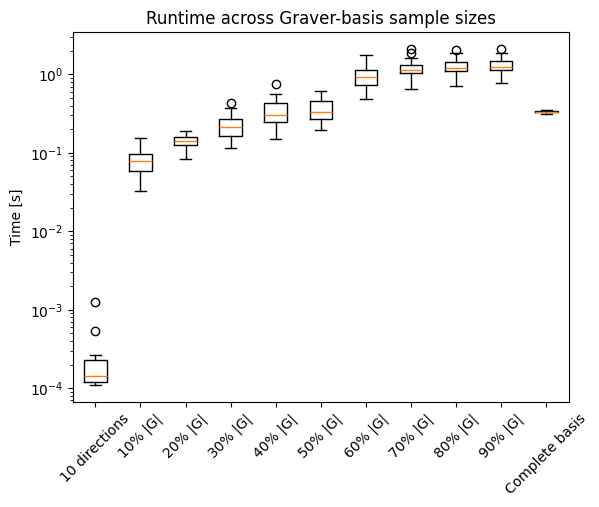

fig, ax1 = plt.subplots()

ax1.boxplot(np.hstack((times_few, times, times_full)))
runtime_labels = sample_labels
ax1.set_xticklabels(runtime_labels)
plt.ylabel('Time [s]')
ax1.set_yscale('log')
ax1.set_title('Runtime across Graver-basis sample sizes')
plt.xticks(rotation=45)
plt.show()

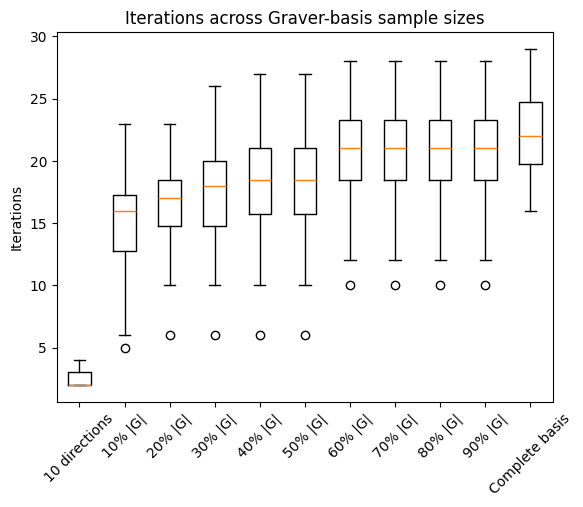

fig, ax1 = plt.subplots()

ax1.boxplot(np.hstack((iters_few, iters, iters_full)))
ax1.set_xticklabels(sample_labels)
plt.ylabel('Iterations')
ax1.set_title('Iterations across Graver-basis sample sizes')
plt.xticks(rotation=45)
plt.show()
